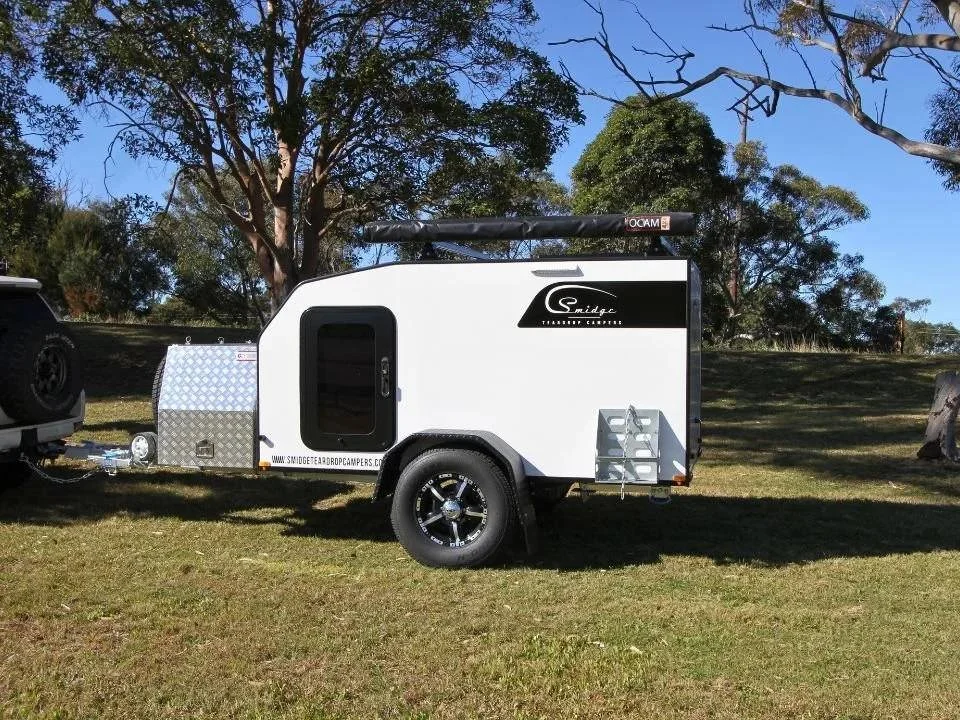

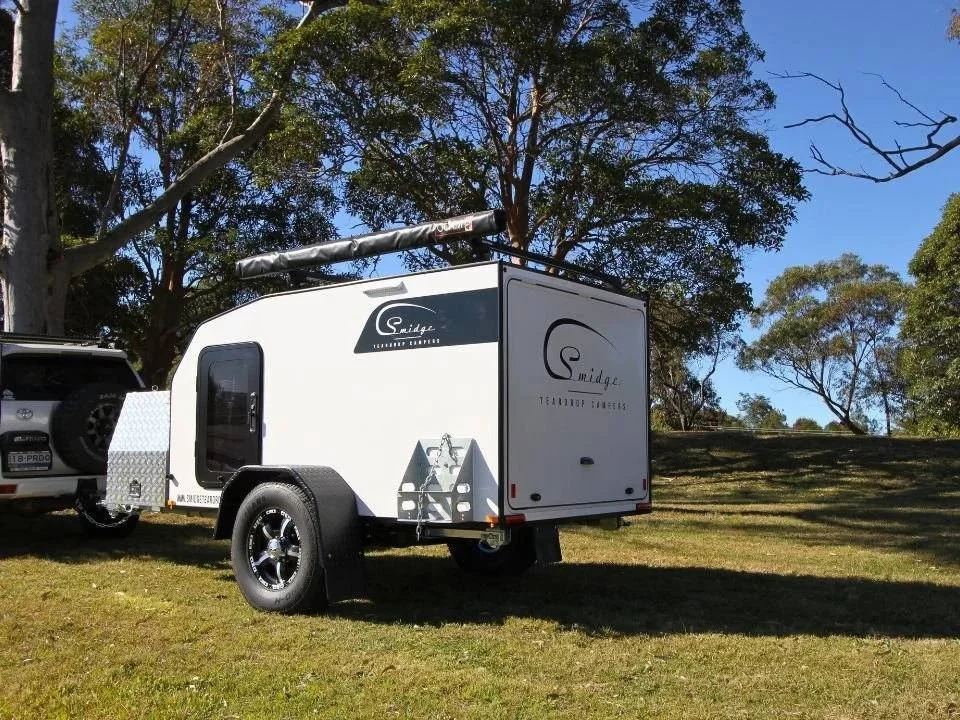

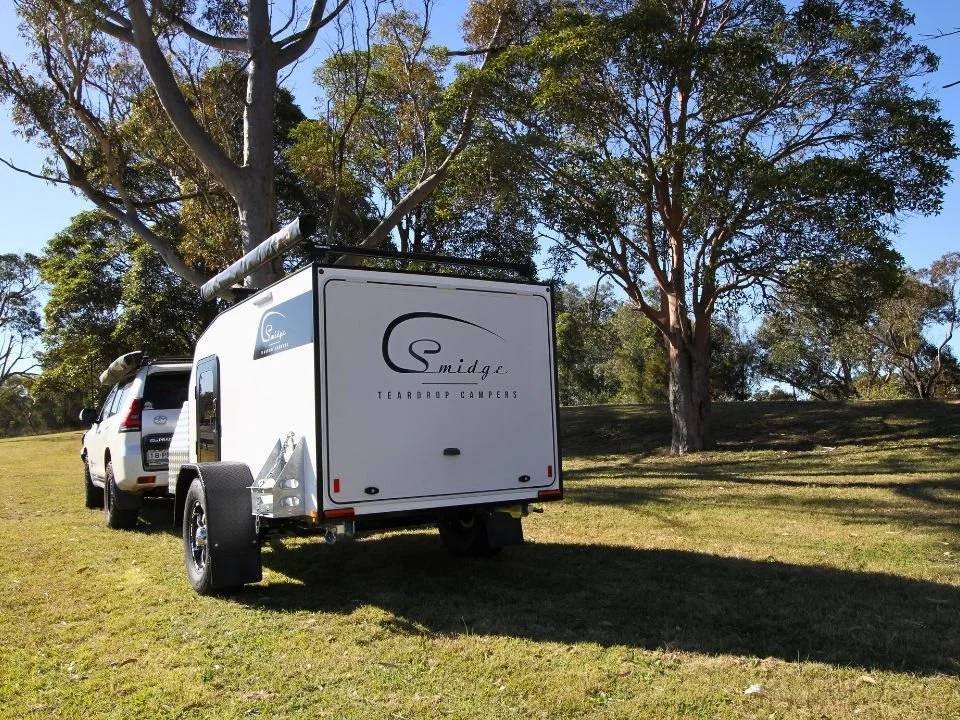

The ‘Dram’
The Dram is our top-of-the-range model, designed to feel like a home on wheels. Packed with every available extra, it gives you everything you need for comfortable, worry-free travel.
With its sleek, aerodynamic design and stylish finish, the Dram looks as good as it performs. Built for off-road adventures, it’s ready to help you explore Australia with confidence.
SPECIFICATIONS
Body length - 2.8m
Overall length (including draw bar) - 4.96m
Body width - 1.7m
Overall width - 2.1m
Height - 2.1m
Weight - 850kg
Ball weight - 90kg
GVM - 1200kg
Payload (how much you can safely add) - 350kg
Bed size - 1530 x 2020mm
Water capacity - 80L
UTILITIES AND EQUIPMENT
Drop-down stabilizer legs
Roof racks

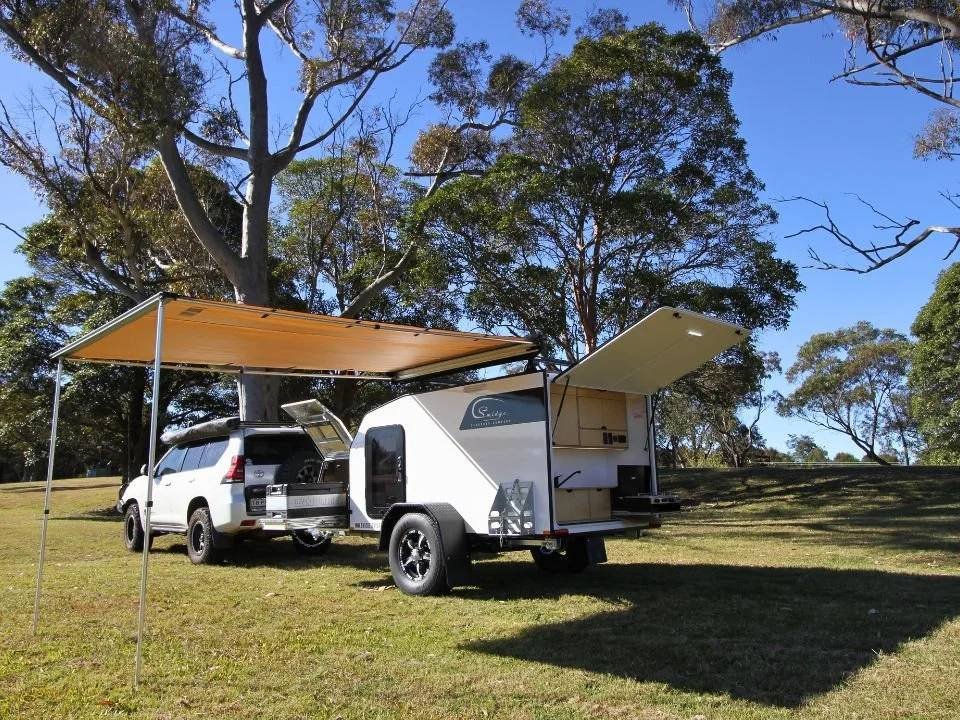

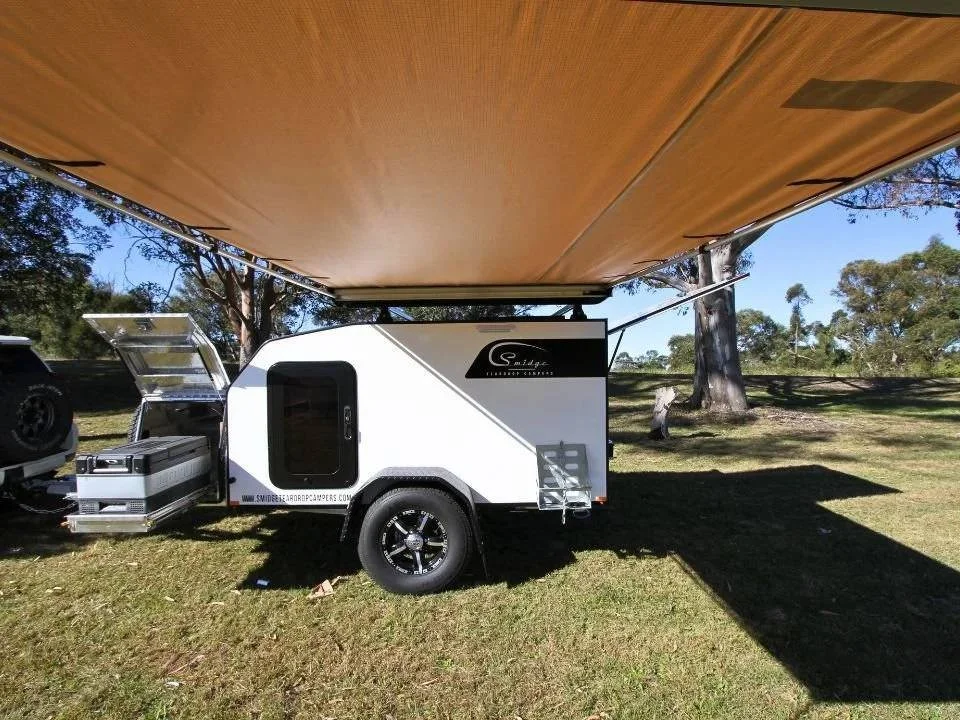

Side mount awning
Slide out fridge freezer
Low-volt consumption LED lights (dimmable)
Rebound leaf spring suspension - suitable for off-road
Dual USB points on bed head and in kitchen
120AMP/HR AGM battery
Master power cut-off switch
Food-grade water tank
12v pump (10L/min)
55L 12v fridge/ freezer
Heavy-duty drawer slides used on the fridge

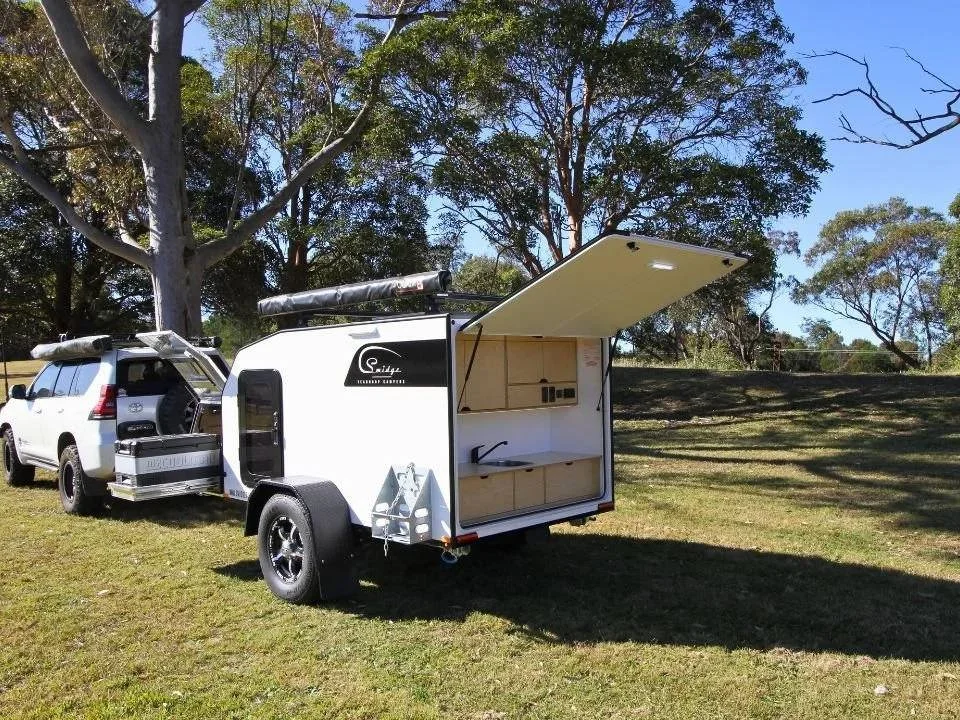

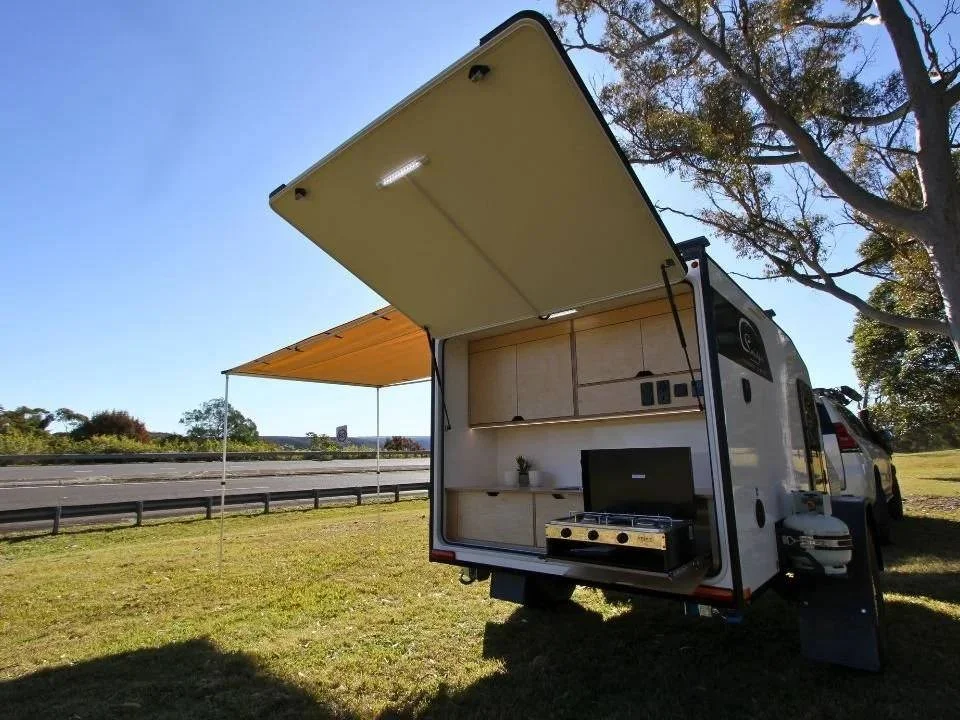

Two-burner stove with grill
Stainless steel sink
Bluetooth speaker
12v fan
Hand brake
Fold up the jockey wheel
Trailer brakes (Mechanical disk) for increased safety
240v power inlet with RCD
240v Power points in the kitchen and bedroom area
170W solar panel with MPPT regulator
Digital battery monitor
FEATURES
Fully welded galvanised steel chassis

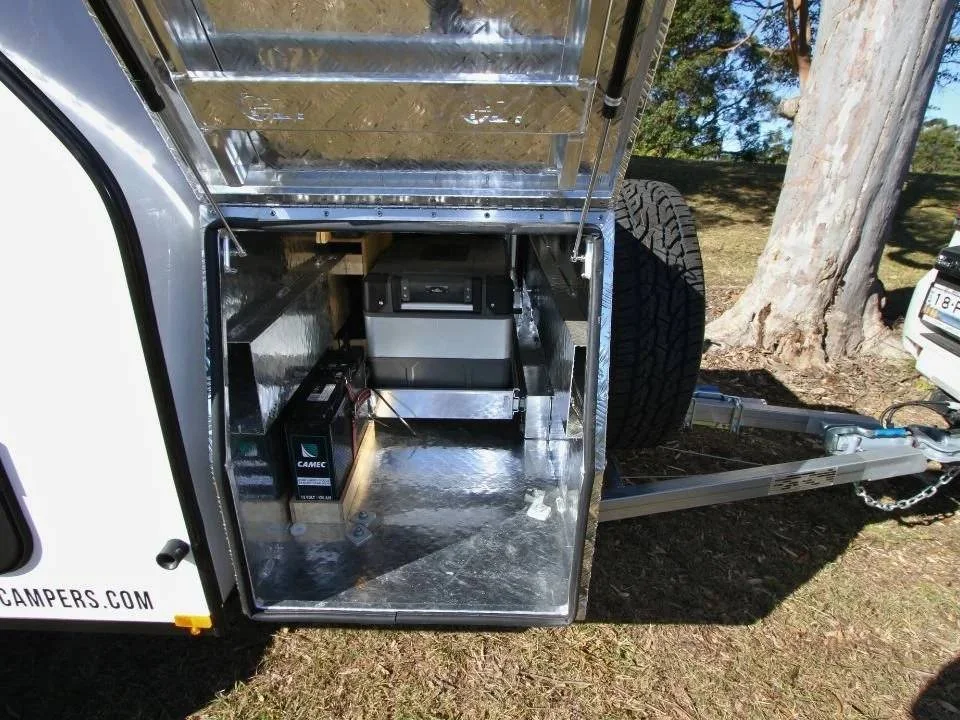

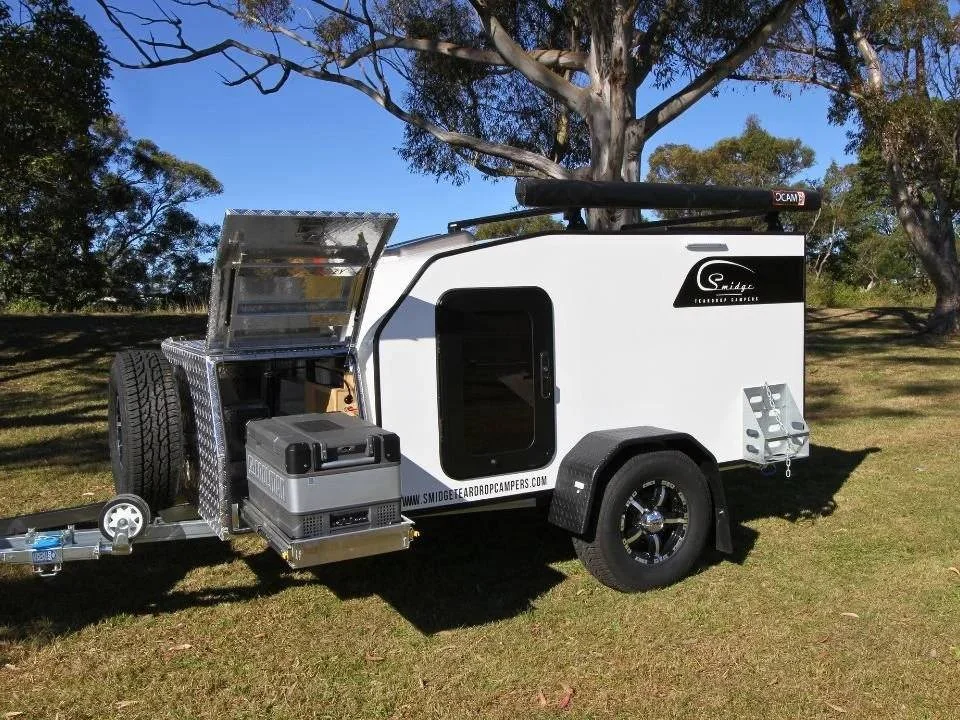

Storage box fitted on the drawer bar
Alloy wheels with off-road tires
Marine plywood floor with waterproofing membrane
European birch plywood cabinetry
Organic hard wax oil coating on interior surfaces
Fiberglass interior and exterior panel
Walls and roof fully insulated
One-piece fiberglass roof – no joins
Lightweight, strong composite walls
Cutlery drawer

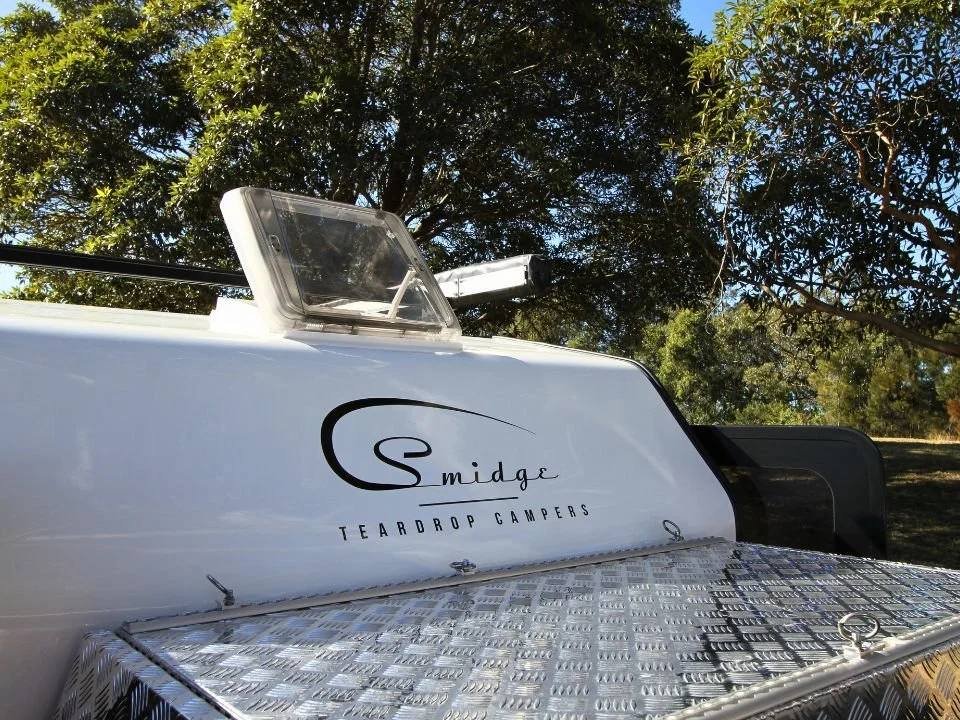

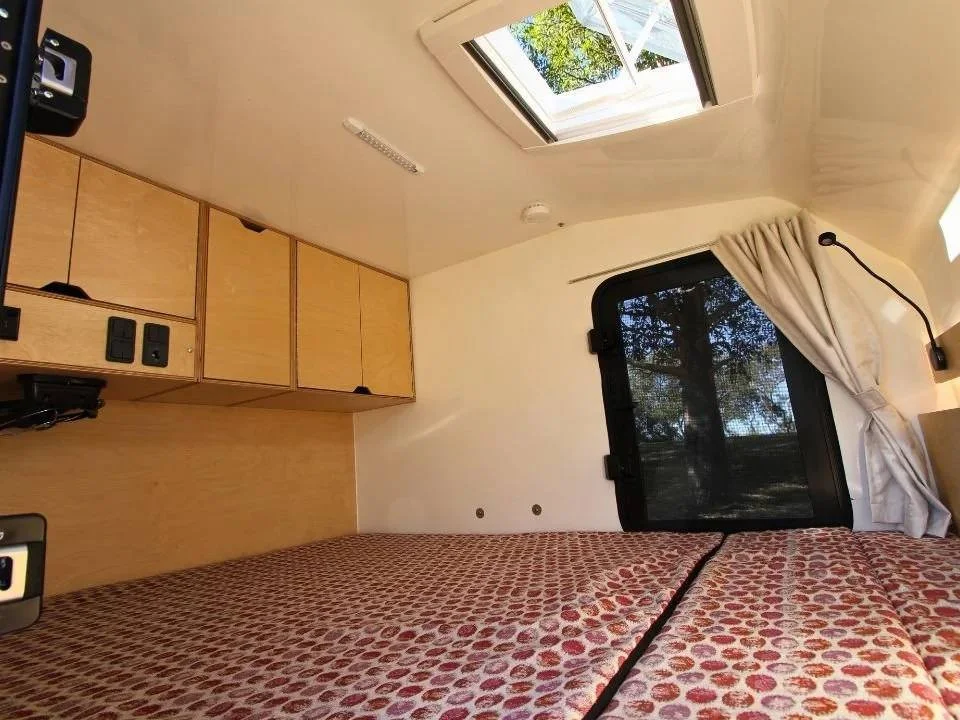

Roof hatch with blinds and flyscreen
Block out curtains

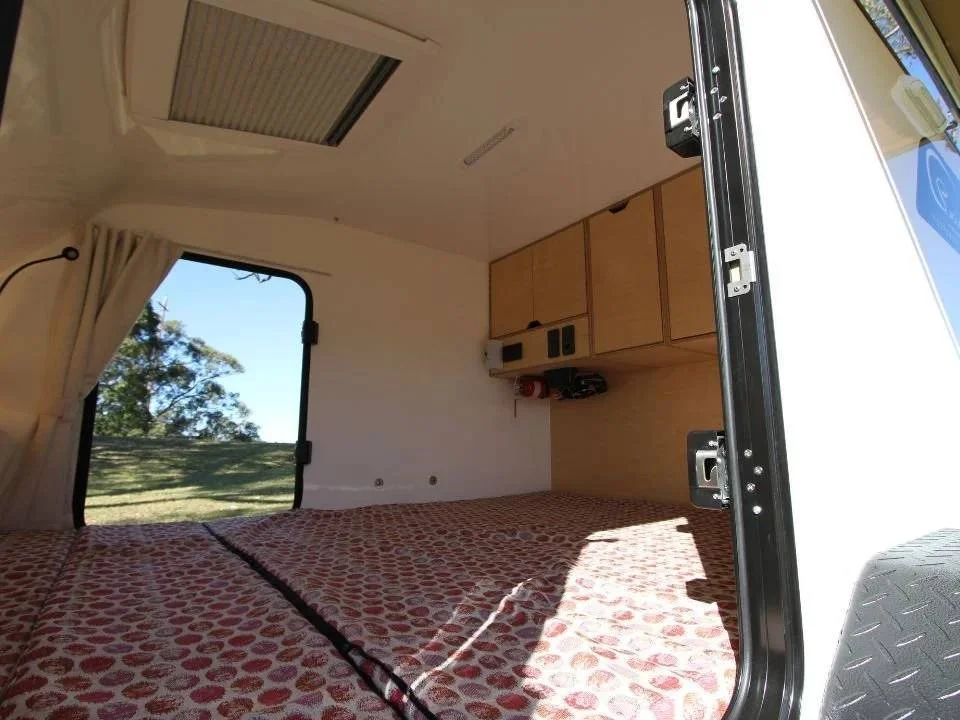

Access doors on both sides with a lockable security door
Awning lights on both sides

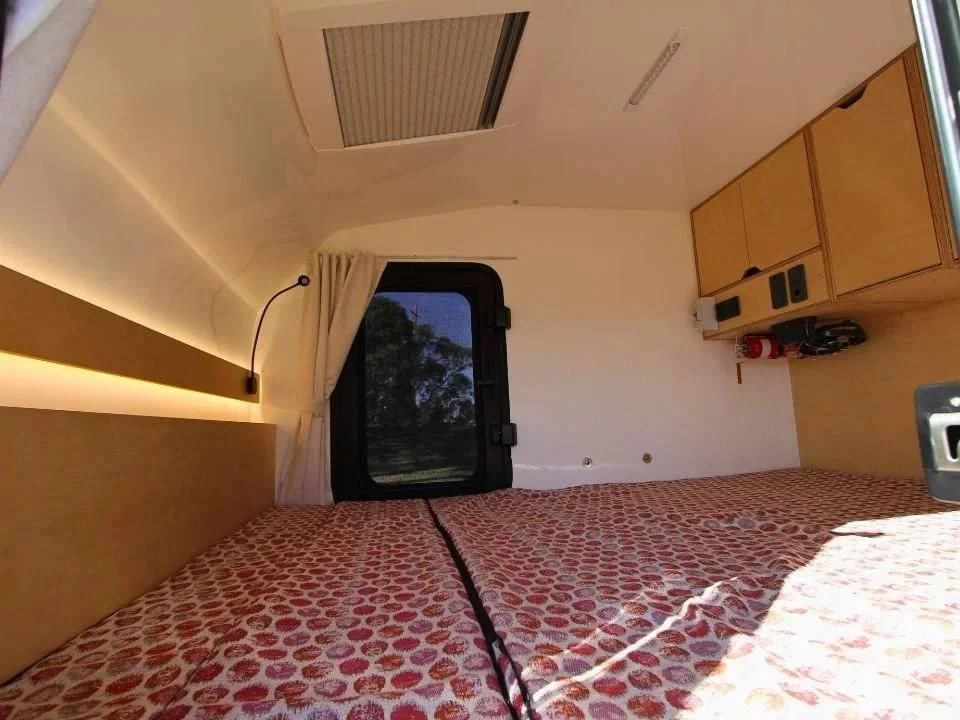

High-density foam mattress folds up to make a daybed/lounge
